What is metal creep? Metal creep isn’t something that crawls on eight legs or bumps in the night, but it can cause a scare over time.

In metallurgy, creep refers to a metal’s slow and permanent deformation caused by stress and exacerbated by heat. When metal creep occurs, components often fail.

Make the best material choice for your components. Yield strength and its relation to metal creep is one factor to consider when choosing metals.

Yield Strength: Under Pressure!

Doo-ba-dum-ba-beh-beh.

Pressure!

Yield strength isn’t what Queen and David Bowie were singing about in “Under Pressure,” but metal, like people, can be affected by too much pressure.

Every metal has unique chemical and physical properties. Yield strength is the point when a metal permanently changes under stress. A metal’s yield strength determines if metal creep is possible under certain conditions—or pressures.

In 1966, the National Research Institute for Metals started testing and recording long-term stresses on metals. Now known as the National Institute for Materials Science, the organization’s data shows that creep strength (yield strength) varies by material and temperature conditions.

Changes in Stress & Creep Properties

When you apply stress to a material below its yield strength, it returns to its original shape. If you do the opposite—apply pressure beyond its yield strength—the material is changed forever.

If too much pressure is applied, a component will fail. Sometimes, you want to make a physical change to a metal. It’s the goal when stamping, for example. In other scenarios, a failed component has significant consequences.

Engineers and metal fabricators consider a product’s final use in design and production. Metals may be exposed to high heat and stress during fabrication. Then the finished component must also withstand its environment. Metals that cannot hold up in their environments may crack, pit or warp.

The Creep Deformation Process

Deformation doesn’t happen overnight. Instead, it occurs over a period of time and is expressed in stages. The process can be mapped out visually as a creep curve.

During creep, atoms move relative to one another by grain-boundary sliding, leaving little to no obvious deformation.

Creep deformation follows what’s outlined below:

1. Primary Creep

The first stage of creep is elastic deformation. Due to stress, atoms within the material stretch. This stage is not permanent and reverses once the stress disappears, as long as the stress is within the material’s elastic limit.

2. Secondary Creep

Creep happens rapidly and then slows over time.

The next stage occurs once the stress or strain becomes constant. Calculating the strain rate measures changes in the material over time and helps identify when a constant is reached.

Strain Change / Time Change = Strain Rate

Since the strain rate is constant here, creep progresses slowly.

3. Tertiary Creep

Permanent deformation begins if the stress goes beyond the material’s elastic limit.

In the final phase of creep deformation, the strain on the material damages its microstructure. The metal permanently changes as the microstructure is affected. After that, it begins to deteriorate quickly.

Damage to its microstructure causes metal to break or fracture, which is known as creep failure.

Avoiding Metal Creep

Metal creep is more common in applications with high heat and stress.

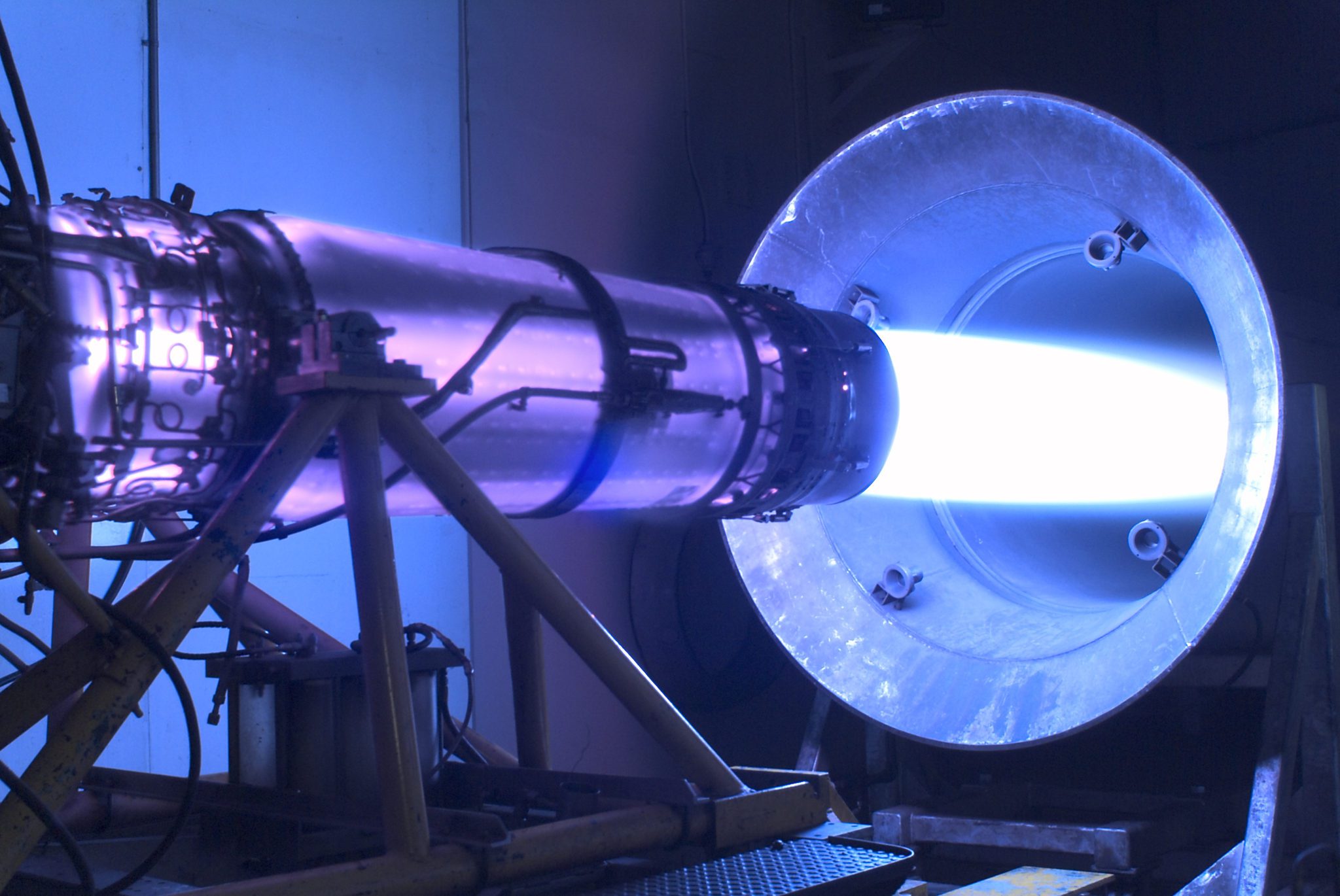

Automotive and jet engine materials must handle high loads and combustion temperatures. Power plant and piping line components also have a higher risk of metal creep because of their environments.

The best way to reduce creep is to reduce the working temperature. You can also avoid metal creep by changing the metal’s load. However, those changes are only possible sometimes, depending on the application.

Choosing the Right Metal

If metal creep is a concern, talk to your fabricator. The easiest way to avoid metal creep is to choose an appropriate metal for the project. Component design features like reducing bends or increasing the diameter of load-carrying areas can also help reduce the effects of metal creep.

You can ask your fabricator about alloys that work to avoid creep. Some metals include additives to help prevent or slow it.

Our experts at Metaltech are happy to walk you through your options and offer recommendations for a suitable metal choice. We understand the physical properties of metals, and we have experience working with a variety of industries.

Request a quote to kick off your project. Our full-service custom fabrication shop is here for your needs.
