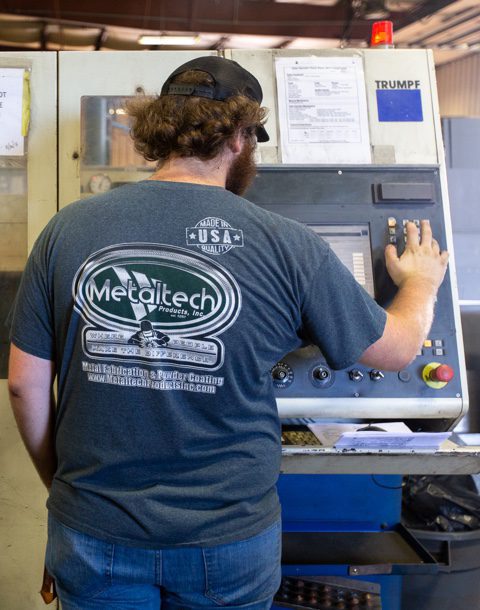

metaltech workers operates a metal cutting machine

Sheet Metal
Cutting Operations

We transform raw materials into workable shapes for the remaining stages of fabrication. Removing excess material and cutting out a precise shape is the first step to manufacturing your custom component parts.

We work with a variety of sheet metals, including stainless steel, titanium, aluminum and copper.

/ / /Custom Metal Laser Cutting / / /

Cut Shapes with Precision

At Metaltech, our laser cutting services allow us to cut blanks or flat patterns for bending and folding later. We cut precise shapes out of sheet metal efficiently with high-speed lasers and automated material handling. After cutting out the exterior of the part, we can include holes, slots, relief cuts, etching and more.

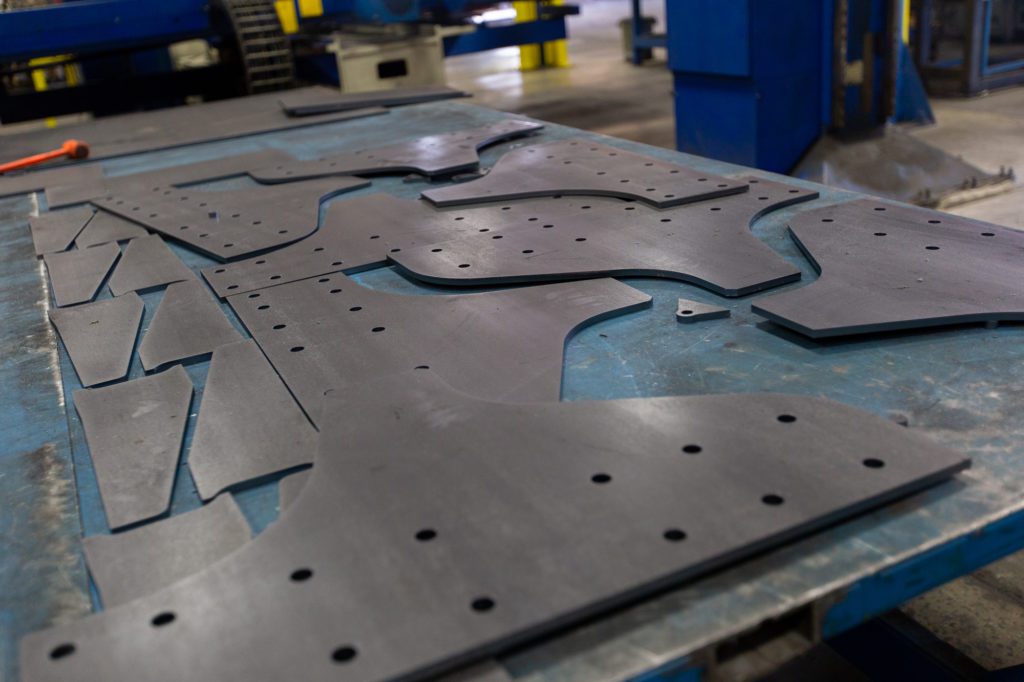

cut pieces of metal collected on a work station

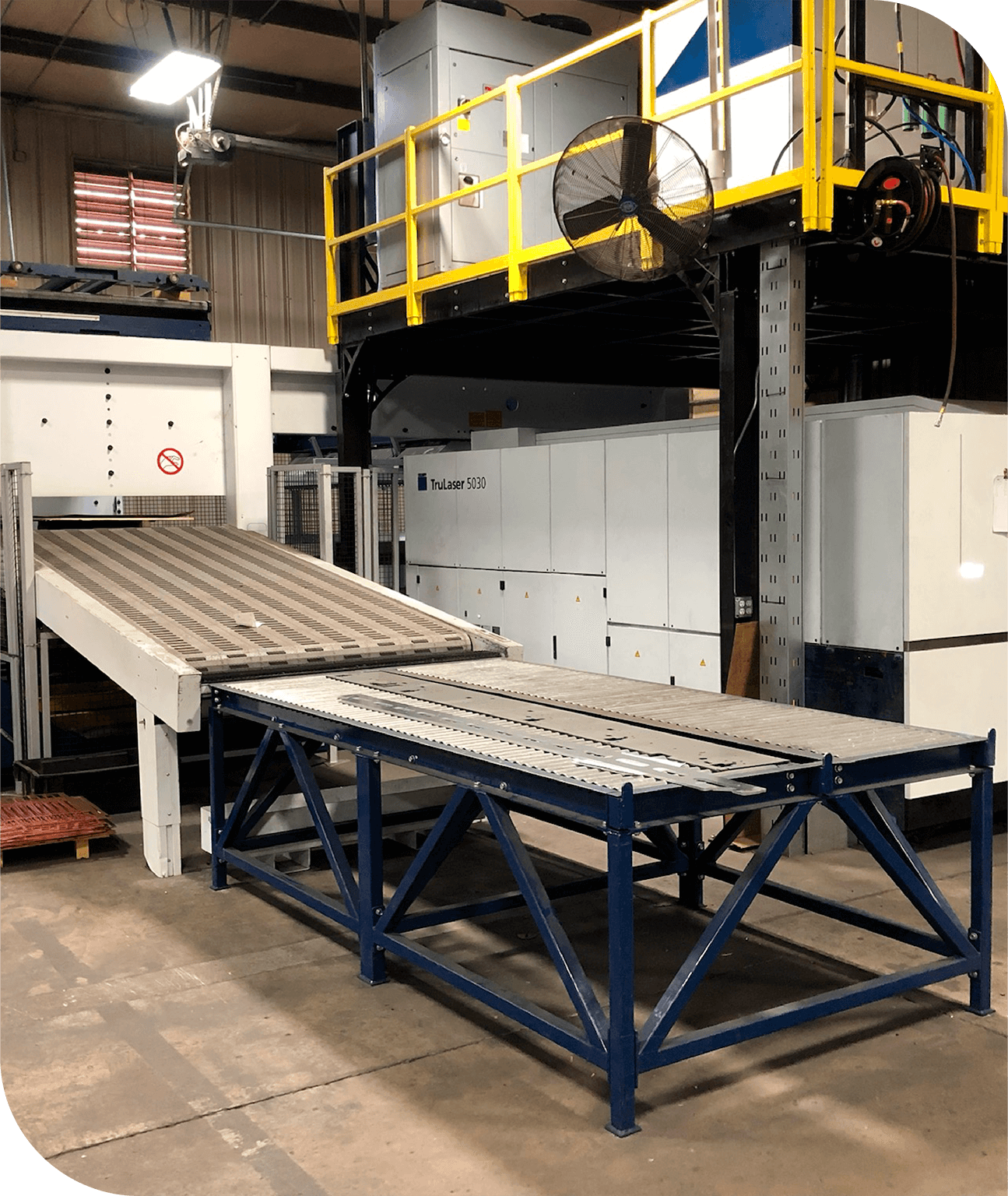

The TruLaser 5030 is a laser cutter for metal fabrication projects.

Meet Our Laser Cutting Machines

Our TruLaser 5030 2D Cutting Machine is a 10,000W powerhouse. It cuts through thick and thin materials with speed and ease. A 60″ x 120″ sheet is the maximum size the machine can take.

Maximum material thicknesses:

  • Steel: 30 mm or 1.18 inch
  • Stainless steel: 32 mm or 1.25 inch
  • Aluminum: 30 mm or 1.18 inch
  • Copper: 16 mm or .63 inch
  • Brass: 12 mm or .47 inch
  • Titanium: 6 mm or .25 inch

Our TruLaser 3030 leaves even, smooth cutting edges and can create small contours in metal. This accurate cutting machine can handle a maximum sheet size of 60″ x 120″.

Maximum material thicknesses:

  • Steel: 20 mm or 1 inch
  • Stainless steel: 15 mm or .60 inch
  • Aluminum: 10 mm or ½ inch

/ / /Sheet Metal Punch Press/ / /

Accurately Remove Material & Add Features

Punch, nibble, form, thread and carve. Our sheet metal punch presses do it all accurately with a complete 360-degree rotation on all tools.

Cut-outs. Perforations. Beading. Stamped logos. You name it. If you need something threaded, stamped or specialty cut, we’ve got it covered.

With 19 available tool stations and numerous 5- and 10-station multi-tools, our punch presses decrease setup and tool change times. That means your custom parts will be made as efficiently as possible—and they’ll be ready for you even sooner.

Our punch presses can work with materials up to 4′ x 8′ and a maximum sheet thickness of ¼”.

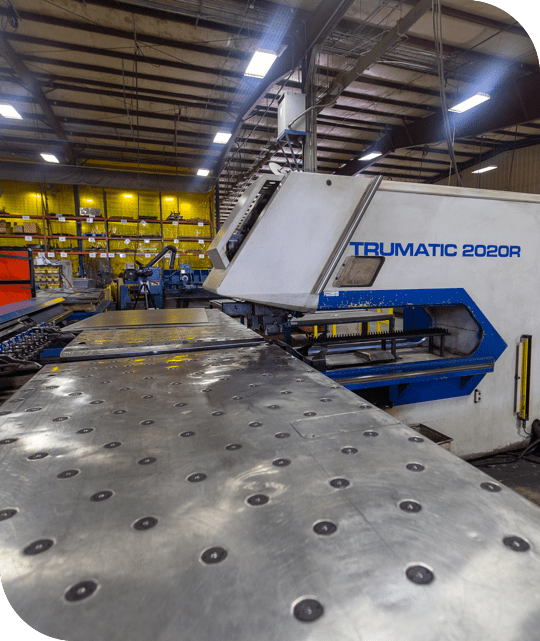

TruMatic 2020R metal cutting machine

/ / / Automated Sawing / / /

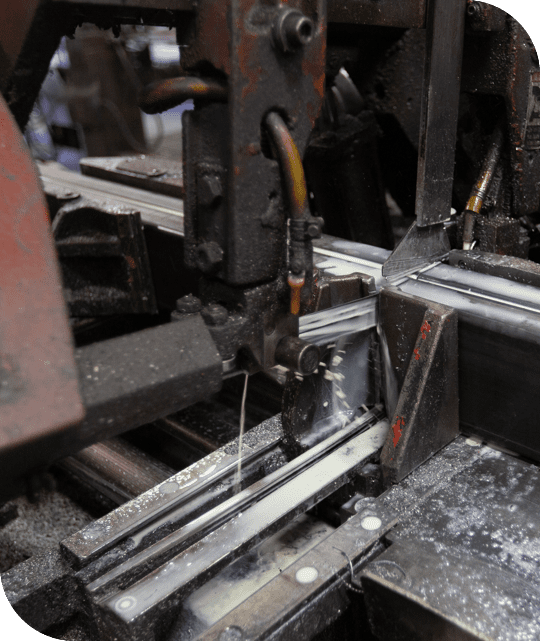

structural materials being cut

Cut Structural Materials

Need structural materials like bar stock, angle, tubing or channels? These items are perfect for cutting with a programmable band saw or cold saw.

Programmable Band Saw

Our programmable band saws can make uniform straight cuts or add curves to the outside of a workpiece. The maximum dimensions we work with are 12″ x 6″ profile stock.

Manual Cold Saw

Our manual cold saws work best for smaller volume projects that need to be produced with special attention to detail. We can cut tubing, pipe and more with an accurate, burr-free finish. We’re able to cut up to 6″ O.D. stock.

Get a Quote

Start cutting away at your custom fabrication needs. Request a quote from us today describing your next project.
